Registration

This example illustrates registration of meshes and images using the Stanford Bunny.

import mymesh
from mymesh import register
import numpy as np
import matplotlib.pyplot as plt

bunny1 = mymesh.demo_mesh('bunny')
bunny2 = mymesh.demo_mesh('bunny-res2')

# Perform an arbitrary rotation to bunny2 so that they are mis-aligned
bunny2 = bunny2.Transform([np.pi/6, -np.pi/6, np.pi/6], transformation='rotation', InPlace=True)

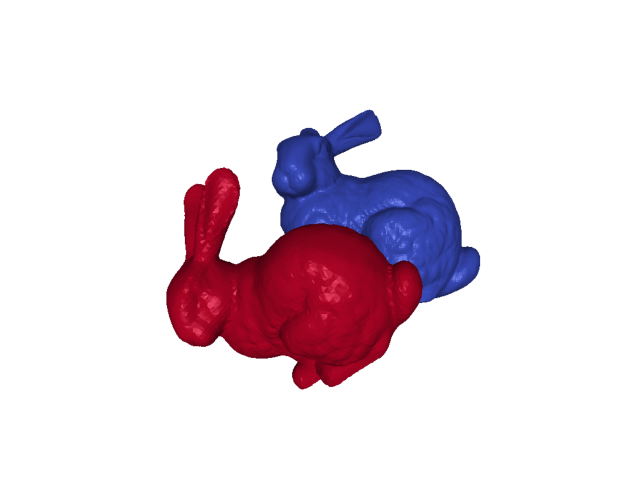

# Plot overlap of bunny1 and bunny2
def overlap_plot(m1, m2):
    m1.NodeData['label'] = np.zeros(m1.NNode)
    m2.NodeData['label'] = np.ones(m2.NNode)
    overlap = m1.copy()
    overlap.merge(m2)
    overlap.plot(scalars='label', show_colorbar=False, view='xy')
overlap_plot(bunny1, bunny2)

RFBOutputContext()

Identifying mesh nodes...Done

bunny_img1 = mymesh.demo_image('bunny')
threshold = 100
voxelsize = (0.337891, 0.337891, 0.5) # mm

# Perform an arbitrary rotation to make a mis-aligned copy the image
R = register.rotation([np.pi/6, -np.pi/6, np.pi/6],
                        center=np.array(bunny_img1.shape)/2)
bunny_img2 = register.transform_image(bunny_img1, R)

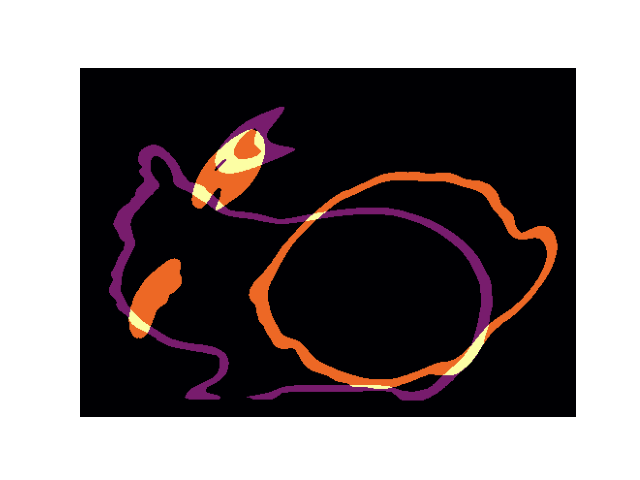

# Plot overlap of bunny1_img and bunny2_img
# (purple=img1, orange=img2, pale yellow=overlap)
overlay = register.ImageOverlay(bunny_img1, bunny_img2, threshold=threshold)
plt.imshow(overlay[:,250], cmap='inferno')
plt.axis('off')

Mesh-to-Mesh Registration

Align the two meshes using the iterative closest point (ICP) algorithm

bunny_aligned, T = register.Mesh2Mesh(bunny1, bunny2)

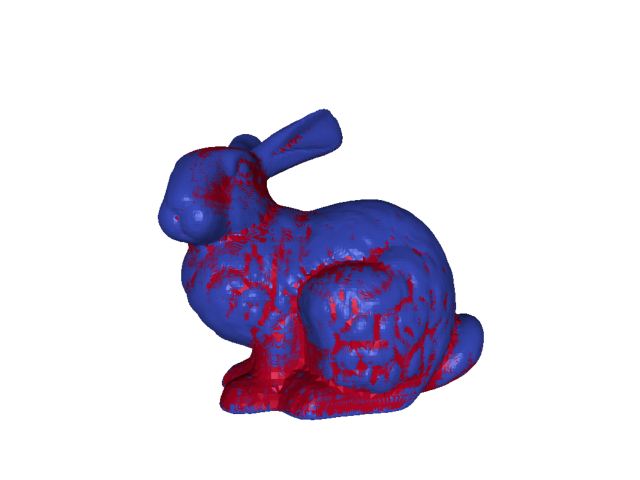

# Plot
overlap_plot(bunny1, bunny_aligned)

RFBOutputContext()

Identifying mesh nodes...Done

Image-to-Image Registration

# Align the two images using the iterative closest point (ICP) algorithm
img_aligned, T = register.Image2Image(bunny_img1, bunny_img2,
                                      method='icp', threshold=threshold,
                                      scale=0.5)

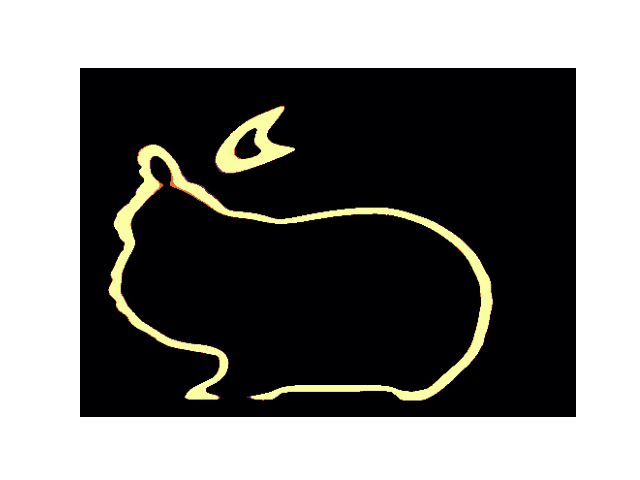

# Plot overlap
# (purple=img1, orange=img2, pale yellow=overlap)
overlay = register.ImageOverlay(bunny_img1, img_aligned, threshold=threshold)
plt.imshow(overlay[:,250], cmap='inferno')
plt.axis('off')
