mymesh.utils.AABB

mymesh.utils.AABB(Points)

Calculate the axis-aligned bounding box of a set of points

Parameters:

Points (array_like) – nx3 point coordinates.

Returns:

aabb – Coordinates of the corners of the AABB

Return type:

np.ndarray

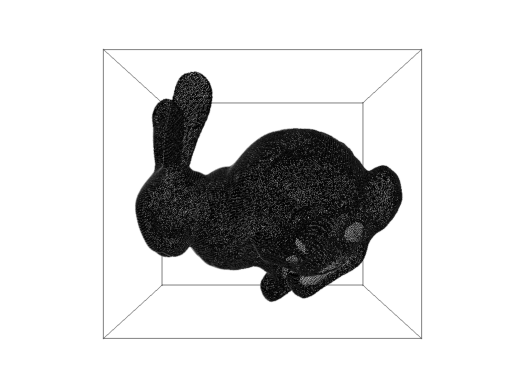

Examples

import mymesh
import numpy as np

# Load the stanford bunny
m = mymesh.demo_mesh('bunny')

# Perform an arbitrary rotation transformation to the mesh
m = m.Transform([np.pi/6, -np.pi/6, np.pi/6],
                transformation='rotation', InPlace=True)

mvbb = utils.AABB(m.NodeCoords)
box = mymesh.primitives.Box(mvbb, Type='surf')
